Timken® ADAPT™ combines cylindrical and spherical roller bearing designs into one easy-to-assemble, high-capacity configuration. It’s ideal for applications with combined misalignment and axial displacement.
Roller Bearings

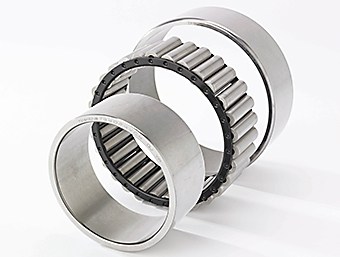

The Timken® ADAPT™ bearing combines the traditional cylindrical roller bearing and spherical roller bearing configurations. Its proprietary outer race and roller profiles plus a cylindrical inner ring combine the key attributes of both bearing types. This unique three-point contact design geometry provides simultaneous misalignment and axial displacement performance, optimizes contact stress distribution, and helps promote roller stability. The result is a more dynamic, more reliable bearing.
Key Benefits
Proven Performance
Timken conducted extensive in-house testing against equivalent-size toroidal bearings from leading brands. Results confirm ADAPT bearings offer:
Including 21 heat generation and bearing life tests conducted on 170 ADAPT and 50 competitor bearings; over 70,000 testing hours and over 8 years; bearings manufactured to ISO 2212 boundary dimensions (60 & 110 x 28 mm); speeds ranging from 1200 to 4800 RPM; loads between 10 and 50 percent of ISO calculated C1 rating.
Design Attributes
- Size range: 100 mm to 170 mm bore (3.94 in. to 6.69 in.)
- Full-complement design with a roller retainer to help eliminate roller fallout

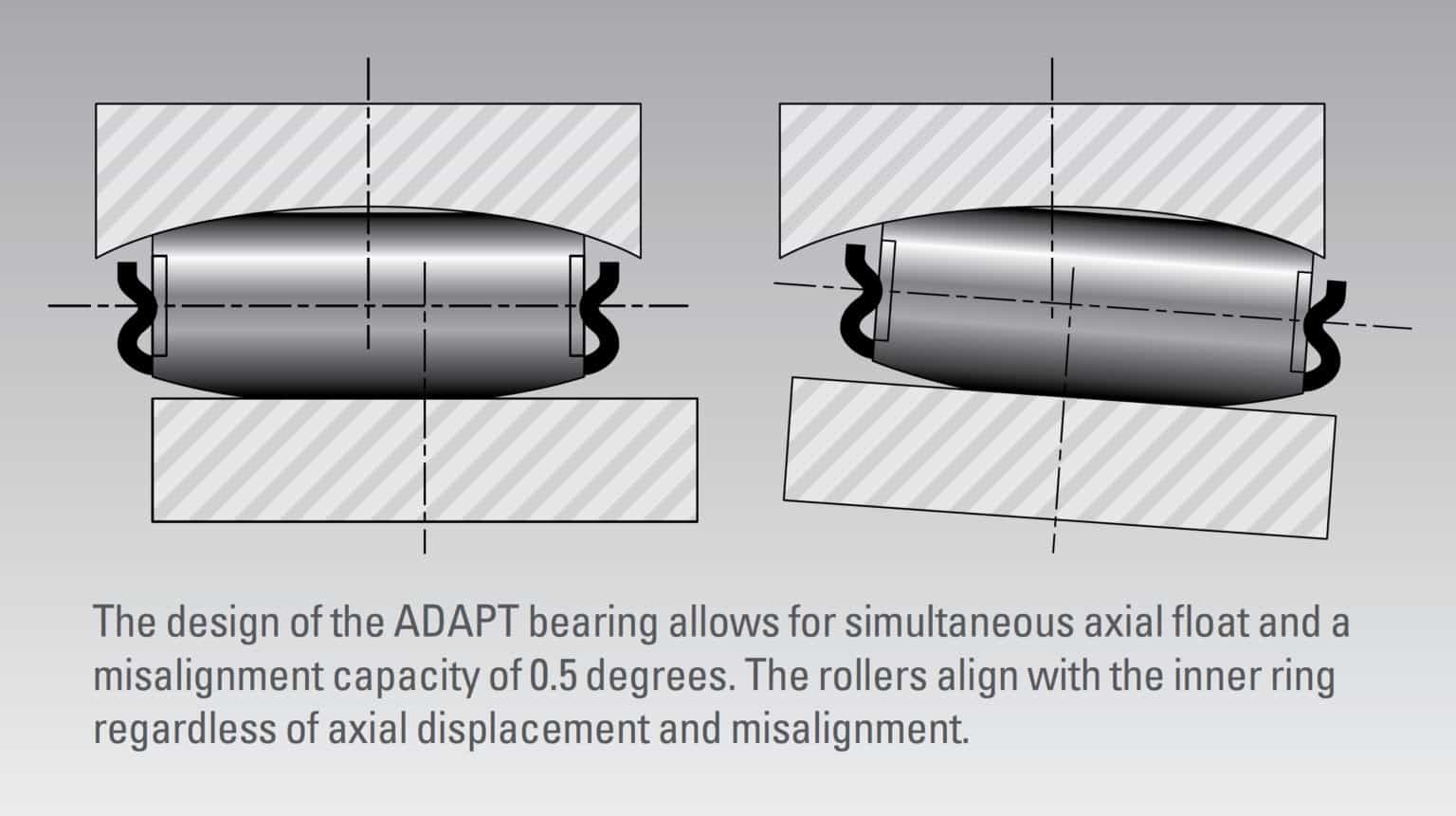

- Simultaneous full misalignment and axial displacement capabilities
- Unique internal geometry optimizes contact stress and roller stability
- Standard ISO dimensions simplify interchange with toroidal and spherical roller bearings
- High static radial capacity for maximum reliability
- Misalignment capability of +/-0.5 degrees (8.7 millirads)
